Pfaff 1/4″ Right Guide Foot for IDT

Description

How to Use the Pfaff 1/4″ Right Guide Foot

For Piecing:

1. Snap on the 1/4″ Right Guide Foot.
2. Engage the IDT™ system.
3. Select a straight stitch.

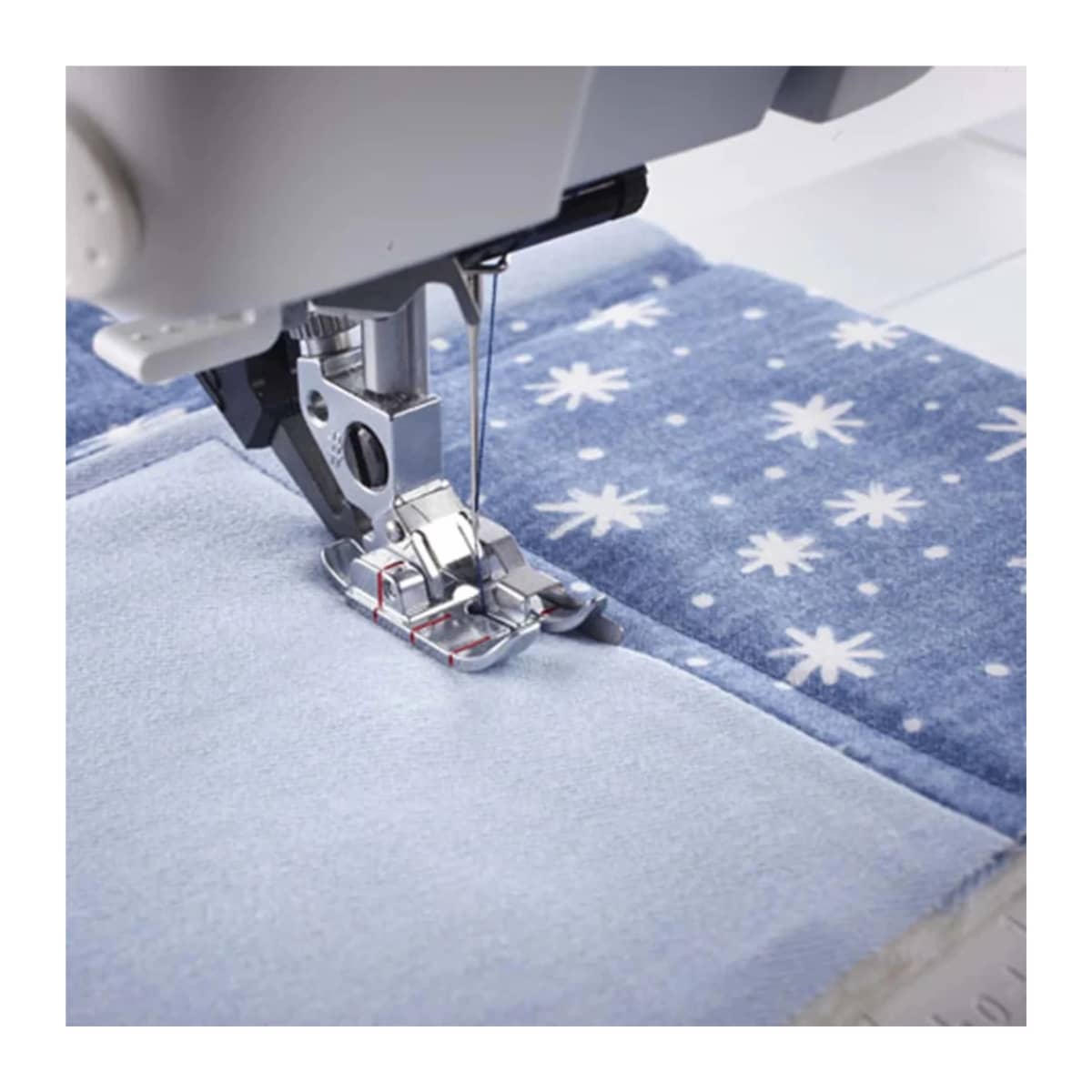

4. Place the fabric, right sides together, under the presser foot with the guide at the edge of the fabric.
5. Sew the blocks together, guiding the edge so it touches the right guide.

For Topstitching:

1. Snap on the 1/4″ Right Guide Foot.
2. Engage the IDT™ system.
3. Select a straight stitch, triple straight stitch or the hand-look straight stitch quilting stitch.

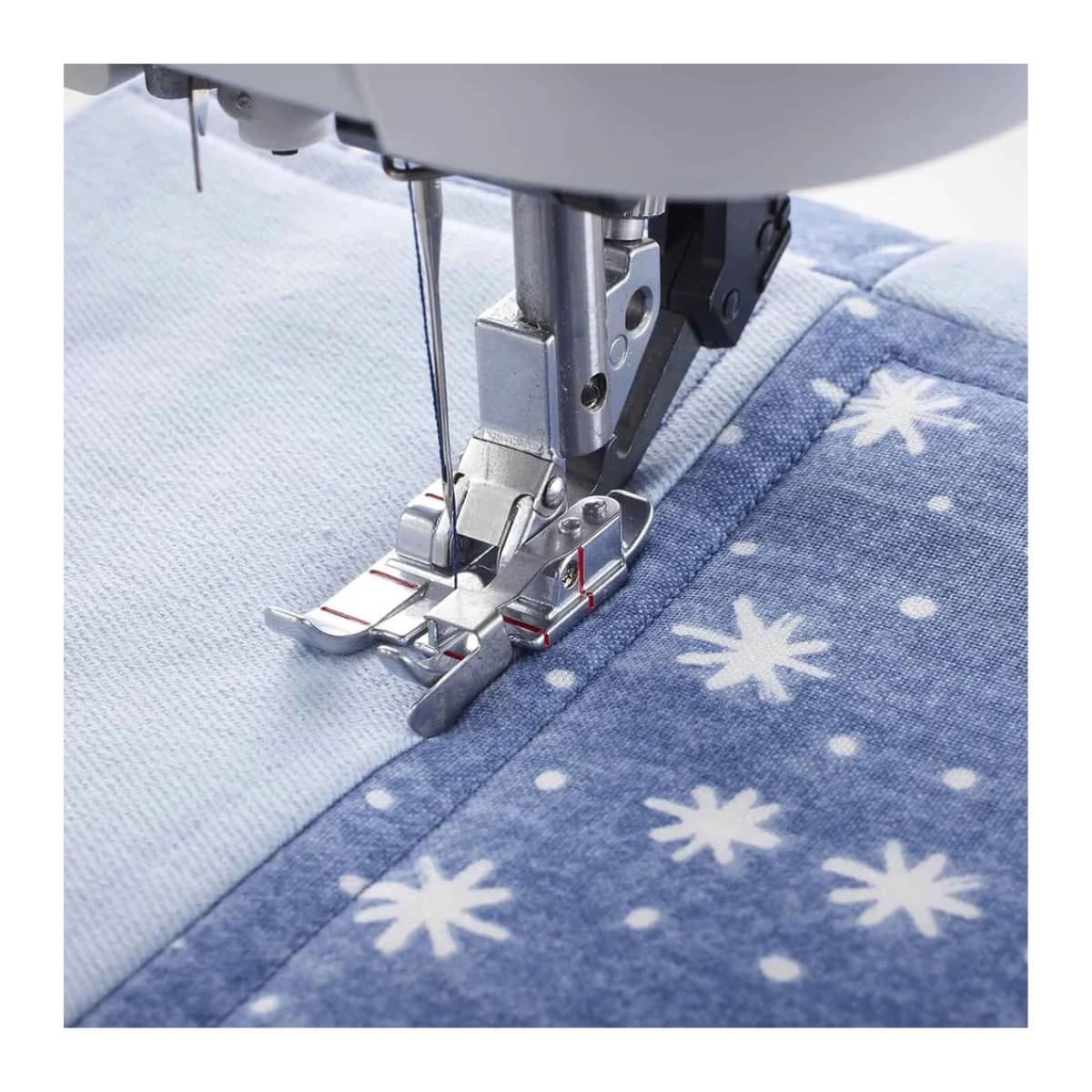

4. Place the quilt under the presser foot with the flange guide in the seam ditch or at the edge of the fabric block.
5. Sew around the block for a perfect 1/4″ distance from every block edge.

Note: With any of the 1/4″ Right Guide feet for IDT™ system attached to machines with manual presser foot lift, we recommend that you do not lift the presser foot to the extra high position. This can cause the needle holder to touch the guide on the presser foot. With the needle set to down position, we recommend lifting the presser foot only as much as needed for pivoting and so the fabric can be turned freely.

Compatible machines:

Category B: (Machines with 5.5 mm stitch width, without IDT™ system)

• hobby™ 1042, 1040, 1032, 1030, 1022, 1020, 1016

Category C: (Machines with 5.5 mm stitch width, without IDT™ system)

• expression™ 2014
• tiptronic™ 6112, 6110, 2020, 2010
• select™ 2.2, 2.0, 1528, 1526, 1520
• hobby™ 4260, 4250, 4240

Category D (Machines with 5.5 mm and 6 mm stitch width, and IDT™ system):

• select™ 4.2, 4.0, 3.2, 3.0
• select™ 1548, 1546, 1540, 1538, 1536, 1530
• tiptronic™ 6270, 6250, 6232, 6230, 6152, 6150, 6122, 6120
• stretch jeans™ 6091, freestyle™ 1527, 1522

Category E (Machines with 6 mm stitch width, and IDT™ system):

• creative™ 2124
• quilt expression™ 2046, 2044, 2042
• expression™ 2036, 2034, 2028, 2026, 2024
• classicstyle™ 2029, 2027, 2025, 2023
• tiptronic™ 2040, 2030, 2020, 2010

Category F: (Machines with 9mm stitch width, without IDT™ System)

• creative™ 7560

Category G (Machines with 9 mm stitch width, and IDT™ system):

• creative™ 2170, 2144, 2140, 2134
• creative™ 7570, 7562, 7550, 7530
• performance™ 2058, 2056, 2054
• quilt expression™ 2048
• expression™ 2038

Category J (Machines with 9 mm stitch width, and IDT™ system):

• creative sensation™ pro II, pro
• creative sensation™
• creative vision™
• creative performance™
• creative™ 4.5, 4.0, 3.0, 2.0
• performance™ 5.0, 5.2
• quilt expression™ 4.2, 4.0, 720
• expression™ 3.5, 3.2, 3.0, 2.0, 150, 710

Category K (Machines with 7 mm stitch width, and IDT™ system):

• creative™ 1.5
• quilt ambition™ 2.0, 630
• ambition™ 1.0, 1.5, 610, 620
• ambition essential™
• passport™ 2.0, 3.0
• SMARTER BY PFAFF™ 260c, 160s, 140s

Category L (Machines with 9 mm stitch width, and IDT™ system):

• creative icon™ 2, creative icon™
• performance icon™
